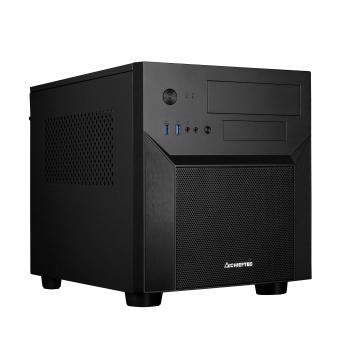

CHIEFTEC MESH CI-02B-OP BLACK 3XUSB NO PSU CHSS
You have to log in to shop/see prices.
|
|
CHIEFTEC MESH CI-02B-OP BLACK 3XUSB NO PSU CHSS
-
Power supply
0W
-
Type
Cube
-
Color
Black
|
Description
Specifications
CI-02B-OP
Features:
- Highly flexible optical drives, internal drives and fan configurations
- Elegant design combining brushed aluminum and mesh features
- Compact space saving dimensions
- Innovative fold-open mechanism for easy installation
Specifications:
Model
EAN code
Color
Material
Motherboard support
Dimension (DxWxH) - 390mm x 265mm x 295mm (Stand +22mm)
Weight (Net/Gross)
Drive bay external
Drive bay internal
Power supply - ATX PSU (optional, up to 160 mm length)
Front I/O
- 2x USB3.1 Gen 1
- Audio-out (AZALIA / HD-Audio)
- Mic-In
Scope of delivery - Screw set, removable dust lter bottom, magnetic dust lter on top
Expansion slots
Cooling Compatibility
- Front: 1x 120mm or 1x 140mm fan
- Rear: 1x 120mm fan
- Top: 1x 120mm or 1x 140mm fan
CPU cooler height (max.)
VGA card length (max.)
Warranty
| Form factor | Cube |
| Type | PC |
| Material | SPCC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 3 |
| Number of 5.25" bays | 1 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 2 |
| Number of external 5.25" bays | 1 |
| Number of expansion slots | 4 |
| Full-Height expansion slots | 4 |
| Side window | No |
| Suitable for | Home/Office |
| Anti-dust filter | Yes |
| Reset button | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 32 cm |
| Maximum PSU length | 16 cm |
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 1 |
| Top fans diameters supported | 120,140 mm |
| Top radiator sizes supported | 120,140 mm |
| Supported HDD sizes | 3.5" |
| SSD form factor | 2.5" |
| Width | 265 mm |
| Depth | 390 mm |
| Height | 295 mm |
| Weight | 4.3 kg |
| Material thickness | 0.6 mm |
| Package weight | 5.2 kg |
| Harmonized System (HS) code | 84733080 |
