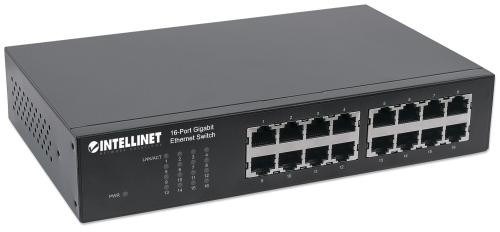

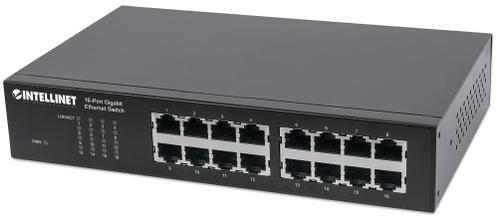

INTELLINET Switch 16x GE Desktop/Rackmount
You have to log in to shop/see prices.
|
|
INTELLINET Switch 16x GE Desktop/Rackmount
-
Product
Unmanaged
-
Ports
16
-
Speed
1Gbps
|
Description
Specifications
INT Network Switch, 16-Port (RJ45), Gigabit
| Switch type | Unmanaged |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| MAC address table | 8192 entries |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 1.488 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 9.1 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 215 mm |
| Depth | 133 mm |
| Height | 44 mm |
| Weight | 940 g |
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Certification | FCC Class A, CE |
| Harmonized System (HS) code | 85176990 |
