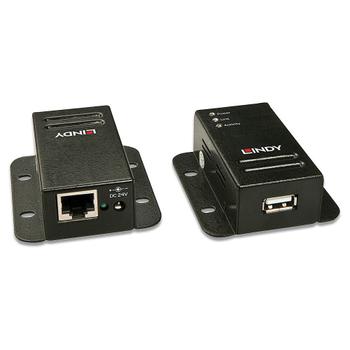

LINDY 50M USB 2.0 CAT.5 EXTENDER
You have to log in to shop/see prices.
|
|
LINDY 50M USB 2.0 CAT.5 EXTENDER
|
Description
Specifications
The Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and the host computer by up to 50m.
A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
| Type | Network transmitter & receiver |
| Maximum transfer distance | 50 m |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Chipset | NS1021 |
| Plug and Play | Yes |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| USB 2.0 ports quantity | 2 |
| DC-in jack | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Input current | 0.25 A |
| Output voltage | 24 V |
| Output current | 0.5 A |
| Power over Ethernet (PoE) | Yes |
| Power note | 3.5/1.35mm DC |
| Included power plug types | AU, EU, UK, US |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight | 300 g |
| Transmitter width | 6 cm |
| Transmitter depth | 6.7 cm |
| Transmitter height | 2.3 cm |
| Receiver width | 6 cm |
| Receiver depth | 6.7 cm |
| Receiver height | 2.3 cm |
| Cables included | USB Type-A to USB Type-B |
| Manual | Yes |
| Package type | Box |
| Package width | 185 mm |
| Package depth | 140 mm |
| Package height | 55 mm |
| Package weight | 400 g |
| Harmonized System (HS) code | 85176990 |
