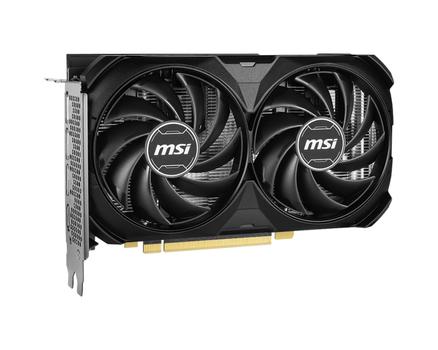

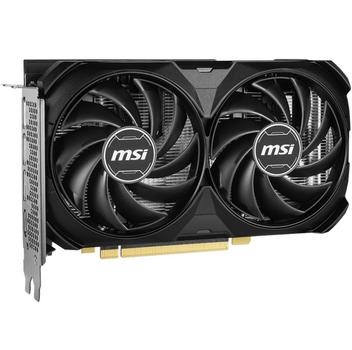

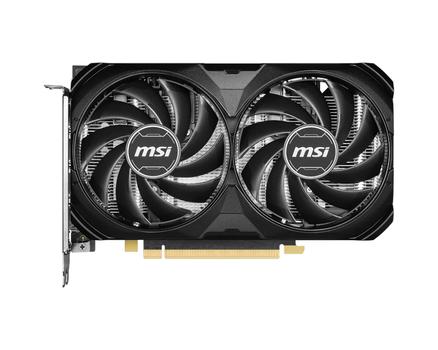

MSI GeForce RTX 4060 Ti 8G VENTUS 2X BLACK E1 OC 1xHDMI 3xDP
You have to log in to shop/see prices.
|
|
MSI GeForce RTX 4060 Ti 8G VENTUS 2X BLACK E1 OC 1xHDMI 3xDP
SKU:
RTX 4060 TI 8G VENTUS 2X BLACK E1 OC
-
GPU Family
NVIDIA
-
GPU
GeForce RTX 4060 Ti
-
Interface
PCI Express 4.0
-
Video Memory
8GB
-
Video Memory Type
GDDR6
-
Memory Bus
128
-
HDMI
1
-
Displayport
3
-
USB-C
0
-
Profile
Dual Slot
-
Cooling Type
Active
|
Description
Specifications
GeForce RTX™ 4060 Ti 8G VENTUS 2X BLACK E1 OC
Features:
- WITH DLSS 3
- Game, stream, create. The GeForce RTX™ 4060 Ti lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
- Boost Clock / Memory Speed
- 2565 MHz / 18 Gbps
- 8GB GDDR6
- DisplayPort x 3 (v1.4a)
- HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
- Dual Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.

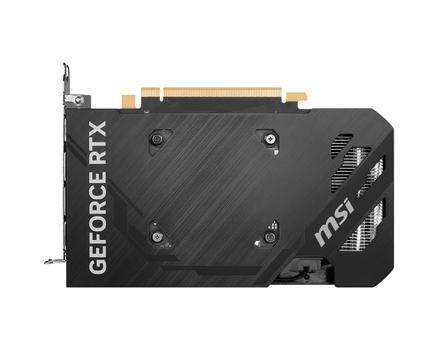

- Reinforcing Backplate
- The reinforcing backplate features a flow-through design that provides additional ventilation.
- MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Specifications:
- Model Name GeForce RTX™ 4060 Ti 8G VENTUS 2X BLACK E1 OC
- Graphics Processing Unit NVIDIA® GeForce RTX™ 4060 Ti
- Interface PCI Express® Gen 4 x16 (uses x8)
- Core Clocks
- Extreme Performance: 2580 MHz (MSI Center)
- Boost: 2565 MHz
- CUDA® CORES 4352 Units
- Memory Speed 18 Gbps
- Memory 8GB GDDR6
- Memory Bus 128-bit

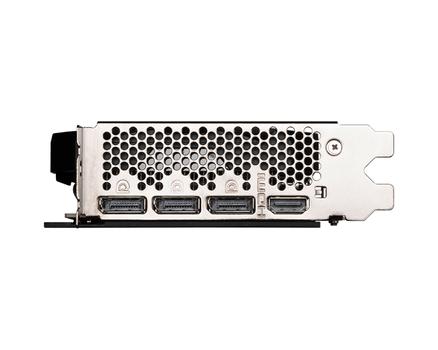

- Output
- DisplayPort x 3 (v1.4a)
- HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)
- HDCP Support Y
- Power consumption 165 W
- Power connectors 8-pin x 1
- Recommended PSU 550 W
- Card Dimension (mm) 199 x 120 x 42 mm
- Weight (Card / Package) 566 g / 771 g
- DirectX Version Support 12 Ultimate
- OpenGL Version Support 4.6
- Maximum Displays 4
- G-SYNC® technology Y
- Digital Maximum Resolution 7680 x 4320
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 4352 |
| Processor boost clock speed | 2565 MHz |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 18 Gbit/s |
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| AMD FreeSync | No |
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 4.0 |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Illumination | Yes |
| Product colour | Black |
| Minimum system power supply | 550 W |
| Power consumption (typical) | 165 W |
| Supplementary power connectors | 1x 8-pin |
| Weight | 566 g |
| Length | 199 mm |
| Depth | 42 mm |
| Height | 120 mm |
| Package weight | 771 g |
| Package type | Box |
