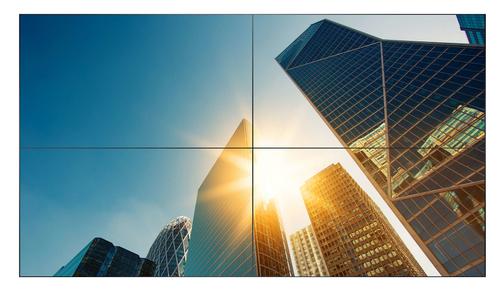

PHILIPS Signage Solutions X-Line 55 Inch 1920 x 1080 Pixels Full HD HDMI DVI VGA Videowall

Philips Signage Solutions Video Wall Display 55BDL4107X 55" Direct LED Backlight Full HD 700cd/m²

• Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
• From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.
• Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.
• Embed an Android System-on-Chip (SoC) in your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).
• Connect two or more Philips professional displays to create a tiled videowall-without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported, and if you're showing that content on four screens you get the best possible dot-by-dot resolution.
• Boost image quality with Pure Colour Pro. Delivering higher luminance through custom colour temperature settings and advanced gamma calibration, content looks crisper and more radiant for stunning realism with a visual pop.

• Picture/Display

  Diagonal screen size (metric)

  138.7  cm

  Diagonal screen size (inch)

  54.6  inch

  Panel resolution

  1920x1080p

  Optimum resolution

  1920 x 1080 @ 60 Hz

  Brightness

  700  cd/m²

  Dynamic contrast ratio

  500,000:1

  Response time (typical)

  8  ms

  Aspect ratio

  16:9

  Viewing angle (horizontal)

  178  degree

  Viewing angle (vertical)

  178  degree

  Pixel pitch

  0.63 x 0.63 mm

  Display colors

  1.07 B

  Contrast ratio (typical)

  1100:1

  Haze

  28 %

• Supported Display Resolution

  Computer formats

  • 720 x 400, 70Hz
  • 800 x 600, 60, 75Hz
  • 1024 x 768, 60, 75Hz
  • 1280 x 768, 60Hz
  • 1280 x 800, 60Hz
  • 1280 x 960, 60Hz
  • 1280 x 1024, 60Hz
  • 1360 x 768, 60Hz
  • 1366 x 768, 60Hz
  • 1600 x 1200, 60Hz
  • 1920 x 1080, 60Hz

  Video formats

  • 720p, 50, 60Hz
  • 1080i, 25, 30Hz
  • 1080p, 50, 60Hz

• Connectivity

  Video input

  • Display Port1.2 (x1)
  • DVI-D (x1)
  • HDMI 2.0 (x2)
  • VGA (Analog D-Sub) (x1)

  Audio input

  3.5 mm mini jack (x1)

  Video output

  DisplayPort 1.2 (x1)

  Audio output

  3.5 mm Mini Jack (x1)

  External control

  • IR (in) 3.5 mm jack
  • IR (in/out) RJ45
  • RS232 (in/out) RJ45
  • LAN RJ45 (x2)

  Other connections

  • OPS
  • USB 2.0 (x1)

• Convenience

  Placement

  • Landscape (24/7)
  • Portrait (24/7)

  Tiled Matrix

  Up to 10 x 10

  Screen saving functions

  Pixel Shift, Low Bright

  Signal loop through

  • DisplayPort
  • LAN
  • IR and RS232 via RJ45

  Ease of installation

  • Carrying Handles
  • Smart Insert

  Energy saving functions

  Smart Power

  Network controllable

  LAN (RJ45)

• Operating conditions

  Temperature range (operation)

  0 ~ 40  °C

  Temperature range (storage)

  -20 ~ 60  °C

  Altitude

  0 ~ 3000 m

  MTBF

  50,000  hour(s)

  Humidity range (operation)[RH]

  20 - 80% (without condensation)

  Humidity range (storage) [RH]

  5 - 95% (without condensation)

• Power

  Consumption (Typical)

  190  W

  Consumption (Max)

  370 W

  Consumption (On mode)

  150 W

  Standby power consumption

  0.5 W

  Energy Label Class

  G

• Sound

  Built-in speakers

  2 x 10W (RMS)

• Accessories

  Included Accessories

  • AC Switch Cover
  • Edge Alignment Kit
  • Gap pad x3
  • IR sensor cable (1.8 m) (x1)
  • Quick start guide (x1)
  • Remote control & AAA batteries
  • RJ45 / RS232 converter
  • Wire Clamper (x3)
  • Power cord
  • DP cable (x1)
  • RJ45 cable (x1)

• Miscellaneous

  On-Screen Display Languages

  • Arabic
  • English
  • French
  • German
  • Italian
  • Japanese
  • Polish
  • Russian
  • Spanish
  • Simplified Chinese
  • Turkish
  • Traditional Chinese

  Regulatory approvals

  • CE
  • FCC, Class A
  • RoHS
  • CB
  • ETL

  Warranty

  3 years warranty

• Dimensions

  Set Width

  1212.2  mm

  Set Height

  683  mm

  Set Depth

  97.7 mm(D@WallMount)/98.9 mm(D@Handle)  mm

  Set Width (inch)

  47.72  inch

  Set Height (inch)

  26.89  inch

  Set Depth (inch)

  3.85 (D@WallMount)/3.89 (D@Handle)  inch

  Bezel width

  0.88 mm + 0.88 mm

  VESA Mount

  400mm x 400mm, M6

  Product weight

  25.33  kg
