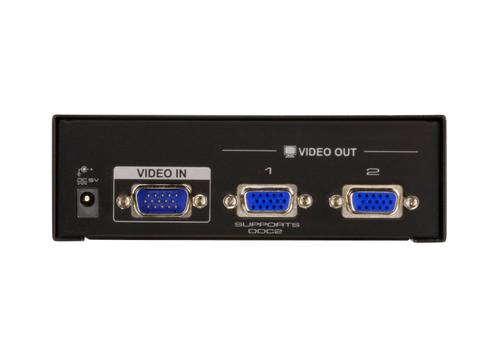

ATEN VS-132A videojakaja kahdelle näytölle, VGA 450 MHz
Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.
|
|
ATEN VS-132A videojakaja kahdelle näytölle, VGA 450 MHz
-
Tyyppi
Videokytkin / jakaja
|
Kuvaus
Tekniset tiedot
Tarvikkeet
2 Port Video Splitter, 450 Mhz. video bandwidth
VS132A
The VS132A Video Splitter is a boosting device that duplicates a video signal from one source to 2 output devices. Cascadable to three levels, the VS132A provides up to 8 video signals, in addition to extending transmission distance up to 65 m, making it excellent for public broadcast systems.
To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA or multisync video signals over long distance without hassle, the VS132A is your best choice.
Applications include:
- Financial - the remote display of stock market information
- Education - the remote display of lectures and lessons to halls and classrooms
- Business - the remote display of addresses to overflow rooms; video conferencing; and demos
Features:
- One video input to 2 video outputs
- Supports up to 450 MHz bandwidth
- Cascadable to 3 levels - provides up to 8 video signals
- Long distance transmission - up to 65m
- Superior video quality - up to 2048 x 1536
- Supports VGA, XGA, SVGA, UXGA, QXGA and multi-sync monitors
- Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity
- All-metal casing
Specification :
| Connectors |
| Video Input |
1 x HDB-15 Male (Blue) |
| Video Output |
2 x HDB-15 Female (Blue) |
| Power |
1 x DC Jack (Black) |
| LEDs |
| Power On |
1 (Green) |
| VGA Bandwidth (-3db) |
450 MHz |
| Video Resolution |
2048 x 1536 @ 60Hz |
| Signal Type |
VGA, XGA, SVGA, UXGA, QXGA, Multisync |
| Power Consumption |
5VDC, 1.5A |
| Environment |
| Operation Temperature |
32F~122F (0C~50C) |
| Storage Temperature |
-4F~140F (-20C~60C) |
| Humidity |
0-80% RH, Non-condensing |
| Unit Dimensions |
| Width |
3.0 in. |
| Height |
1.8 in. |
| Length |
5.1 in. |
| Unit Package Dimensions |
| Width |
9.5 in. |
| Height |
2.5 in. |
| Length |
9.5 |
| Weight |
| Unit Wt. |
.93 lbs |
| Physical Properties |
| Housing |
Metal |
| Case Dimension |
19.5 x 13.5 x 12.0 in.(LxHxW) |
| Case Qty |
20 |
Requirements:
- 1-VGA Computer (In)
- 2-VGA Monitors (Out)
Package Content:
- 1x VS132A Video Splitter
- 1x Power Adapter
- 1x User Guide
| Videoportteja | 3 |
| Videoportin tyyppi | VGA |
| Video sisään | 1 x HDB-15 Male (Blue) |
| Video ulos | 2x VGA |
| Ääniportteja | 0 |
| Tuotteen väri | musta |
| Enimmäiserottelutarkkuus | 2048 x 1536 pikseliä |
| Maksimi käyttöetäisyys | 30 m |
| Kaistanleveys | 450 MHz |
| Tuetut grafiikan erottelutarkkuudet | 2048 x 1536 (QXGA) |
| AC-syöttöjännite | 5 V |
| Virrankulutus | 0,78 W |
| Mitat (LxSxK) | 130 x 75,1 x 44 mm |
| Paino | 420 g |
| Pakkauksen sisältö | 1x VS132A Video Splitter
1x Power Adapter
1x User Guide |
| Käyttölämpötila (T-T) | 0 - 50 °C |
| Varastointilämpötila | -20 - 60 °C |
| Käytön suhteellinen kosteus (H-H) | 0 - 80% |
| Harmonoidun järjestelmän nimikkeistökoodi (HS) | 85176990 |
Huomioi, että kuva on suuntaa-antava ja varsinainen tuote saattaa ulkoasultaan poiketa tuotekuvasta (esim. tietokoneisiin ei välttämättä sisälly näyttöä, vaikka kuvassa sellainen olisikin). Jos tuotenimikkeessä on eri tiedot kuin tuotekuvauksessa, tuotenimikkeen tieto on oikein. Jos jokin asia jää epäselväksi, lähetä sähköpostia tukeen ennen tuotteen tilaamista.
