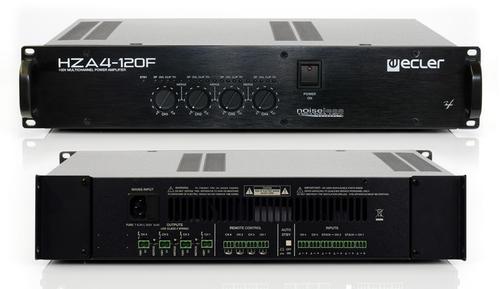

ECLER 120W 100V 4 channel amplifier
Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.
|
|
ECLER 120W 100V 4 channel amplifier
|
HZA-F SERIES
The HZA-F Series are four MERGING channel amplifiers with direct 100 V line (high impedance) outputs. They integrate the new FLEXIPOWER technology (which is the feature that allows for high impedance amplified channels to be merged, getting a resultant channel with double, triple or quadruple power) as well as the Ecler’s proprietary SPM 100 Technology - Channel N, which allows for 100 V speaker lines connection without using 100 V line transformers at their amplified outputs, as this kind of amplifiers usually do. This fact has many advantages, being the main ones the audio quality improvement (specially in the low-end frequencies) and the convection cooling, 100% silent.
Features:
- 4 mono balanced inputs
- 4 x 120 W amplified outputs (100V line level)
- 4 volume remote control ports (0 - 10 VDC)
- Euroblock connectors
- SPM 100 amplification Technology - Channel N (no 100 V output transformers used):
- Improved frequency response (specially at the low-end)
- Convection cooling (100% silent and increased reliability)
- Great efficiency
- Low weight
- Auto stand-by function after 2 minutes without audio input signals, with instantaneous auto-recovery
- Thermal protection
- Overload protection
- Anti-clip system (prevents saturation of the amplified signal)
Every 2 adjacent channels can be merged, getting one out of these possible configurations for the HZA4-120F:
- 4 x 120W @ 100 V line outputs
- 2 x 120W + 1 x 240 W @ 100 V line outputs
- 2 x 240W @ 100 V line outputs
- 1 x 120W + 1 x 360 W @ 100 V line outputs
- 1 x 480W @ 100 V line output
Specifications:
| |
HZA4-120F |
| Output power @ 1% THD: |
|
| 1 Channel |
114 WRMS @ 88Ω |
| 2 Merged Channels |
195 WRMS @ 50Ω |
| 4 Merged Channels |
290 WRMS @ 32Ω |
| 4 Merged Channels |
356 WRMS @ 26Ω |
| Output power @ 10% THD: |
|
| 1 Channel |
145 WRMS @ 88Ω |
| 2 Merged Channels |
226 WRMS @ 50Ω |
| 4 Merged Channels |
348 WRMS @ 32Ω |
| 4 Merged Channels |
430 WRMS @ 26Ω |
| Frequency response (-3dB) |
30Hz - 55kHz |
| High pass filter 3rd order Butterworth |
70Hz |
| THD+Noise @ 1kHz Full Power |
<0.03%typ. 0.2% max. |
| Signal Noise Ratio @ 100V |
>90dB |
| Channel Crosstalk @ 1kHz/100V |
>90dB |
| Inputs: |
|
| Sensitivity nom / Impedance |
0dBV/>20kΩ |
| Connectors |
Terminal Block (Symmetrical) |
| Outputs: |
|
| Connectors |
Terminal Block |
| Indicators: |
|
| Power |
Green (ON), Red (Standby) |
| Signal Present |
-35dB |
| Clip |
|
| Overload |
|
| Thermal |
|
| Remote control: |
|
| DC |
0-10V/0.1A max |
| No attenuation |
0V |
| Full attenuation |
+10V |
| Connectors |
Terminal block |
| Auto power: |
|
| Threshold |
>-30dB aprox |
| Time |
100 sec. aprox |
| Mains voltage |
Depending on your country.
See characteristics in the back of the unit. |
| Power consumption: |
|
| pink noise, 1/8 power @ 136Ω |
340VA |
| pink noise, 1/3 power @ 136Ω |
470VA |
| Standby |
<3W |
| Dimensions: |
|
| Panel |
482.6 x 88mm |
| Depth (Handle excluded) |
392mm |
| Weight |
13.60kg |
