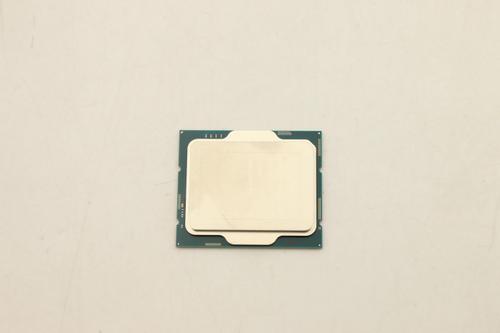

LENOVO SP i7-12700T

Core™ i7-12700T

• Product Collection : 12th Generation Intel® Core™ i7 Processors
• Code Name: Products formerly Alder Lake
• Vertical Segment: Desktop
• Processor Number : i7-12700T
• Lithography : Intel 7
• Use Conditions : PC/Client/Tablet

• Total Cores : 12
• # of Performance-cores: 8
• # of Efficient-cores: 4
• Total Threads : 20
• Max Turbo Frequency : 4.70 GHz
• Intel® Turbo Boost Max Technology 3.0 Frequency : 4.70 GHz
• Performance-core Max Turbo Frequency : 4.60 GHz
• Efficient-core Max Turbo Frequency : 3.40 GHz
• Performance-core Base Frequency: 1.40 GHz
• Efficient-core Base Frequency: 1.00 GHz
• Cache : 25 MB Intel® Smart Cache
• Total L2 Cache: 12 MB
• Processor Base Power : 35 W
• Maximum Turbo Power : 99 W

• Max Memory Size (dependent on memory type) : 128 GB
• Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
• Max # of Memory Channels : 2
• Max Memory Bandwidth : 76.8 GB/s

• Processor Graphics : Intel® UHD Graphics 770
• Graphics Base Frequency : 300 MHz
• Graphics Max Dynamic Frequency : 1.50 GHz
• Graphics Output : eDP 1.4b, DP 1.4a, HDMI 2.1
• Execution Units : 32
• Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
• Max Resolution (DP) : 7680 x 4320 @ 60Hz
• Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
• DirectX Support : 12
• OpenGL Support : 4.5
• Multi-Format Codec Engines : 2
• Intel® Quick Sync Video : Yes
• Intel® Clear Video HD Technology : Yes
• # of Displays Supported : 4
• Device ID: 0x4680
• OpenCL Support : 2.1

• Direct Media Interface (DMI) Revision: 4.0
• Max # of DMI Lanes: 8
• Scalability: 1S Only
• PCI Express Revision : 5.0 and 4.0
• PCI Express Configurations : Up to 1x16+4, 2x8+4
• Max # of PCI Express Lanes : 20

• Sockets Supported : FCLGA1700
• Max CPU Configuration: 1
• Thermal Solution Specification : PCG 2020D
• TJUNCTION : 100°C
• Package Size: 45.0 mm x 37.5 mm

• Intel® Gaussian & Neural Accelerator : 3.0
• Intel® Thread Director: Yes
• Intel® Deep Learning Boost (Intel® DL Boost) : Yes
• Intel® Optane™ Memory Supported : Yes
• Intel® Speed Shift Technology : Yes
• Intel® Turbo Boost Max Technology 3.0 : Yes
• Intel® Turbo Boost Technology : 2.0
• Intel® Hyper-Threading Technology : Yes
• Intel® Virtualization Technology (VT-x) : Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
• Intel® VT-x with Extended Page Tables (EPT) : Yes
• Intel® 64 : Yes
• Instruction Set : 64-bit
• Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States : Yes
• Enhanced Intel SpeedStep® Technology : Yes
• Thermal Monitoring Technologies : Yes
• Intel® Volume Management Device (VMD) : Yes

• Intel® AES New Instructions : Yes
• Secure Key : Yes
• Intel® OS Guard: Yes
• Execute Disable Bit : Yes
• Intel® Boot Guard : Yes
• Mode-based Execute Control (MBEC) : Yes
• Intel® Control-Flow Enforcement Technology : Yes
