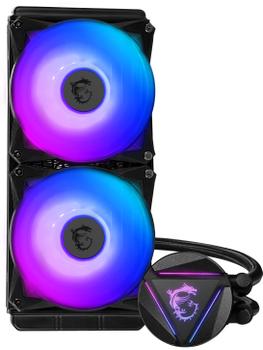

MSI MAG CORELIQUID 280R V2 Liquid CPU Cooler
Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.
|
|
MSI MAG CORELIQUID 280R V2 Liquid CPU Cooler
Tuotekoodi:
MAG CORELIQUID 280R V2
MSI MAG CORELIQUID 280R V2 - Prosessorin nestejäähdytysjärjestelmä - Jäähdyttimen koko: 280 mm - 140 mm
-
Käytetty alue
Suoritin
-
Fan diameter
14cm
|
MAG CORELIQUID 280R V2
Features:
- Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
- The pump has been integrated into the radiator for sound dampening and noise reduction
- Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
- A split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loop
- Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, 1700, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2
Specifications:
- Number of Fans 2
- Fan Dimensions 140 x 140 x 25mm / 5.51 x 5.51 x 0.98 inches
- Fan Speed 500 ~ 1800 RPM
- Fan Power Consumption 2.28 W
- Fan Rated Current 0.19 A
- Fan Rated Voltage 12V DC
- Fan Bearing Two Ball Bearing
- Fan Air Pressure 2.29 mm-H2O
- Fan Noise Level 14.8~33.28 dBA
- Fan Air Flow 84.36 CFM
- Fan Lighting ARGB
- Fan ARGB Cable Connector Pin + Socket
- PWM Mode Yes
- Fan Cable Length (5V ARGB / PWM cable) 550 / 350mm; 21.65 / 13.78 inches
- Radiator Material Aluminum
- Radiator Dimensions 312 x 140 x 27mm / 12.28 x 5.51 x 1.06 inches
- Radiator Water Cooling Pipe Length 400mm / 15.75 inches
- Block Dimensions 80.57x 66.82 x 48.58mm / 3.17 x 2.63 x 1.91 inches
- Block Lighting ARGB
- Block ARGB 5V Cable Length 400mm / 15.75 inches
- Block ARGB Cable
- Connector Pin + Socket
- Pump Load Current 0.34 A
- Pump Rated Voltage 12V DC
- Pump Speed 4200 ±10%RPM
- Pump Power Consumption 4.08W
- Intel Socket
- LGA 1150/1151/1155/1156/1200/1700
- LGA 1366/2011/2011-3/2066
- AMD Socket AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
- Accessories
- 1 to 2 Fan PWM cable x 1
- PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable x 1
| Sopii huoneisiin | Tietokonekotelo |
| Malli | Jäähdytin |
| Tuulettimen halkaisija | 14 cm |
| Tuettu prosessorin kanta | LGA 1150 (Pistoke H3), LGA 1151 (pistoke H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Kanta AM2, Kanta AM2+, Kanta AM3, Socket AM3+, Kanta AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Pyörimisnopeus (min.) | 500 RPM |
| Pyörimisnopeus (maks.) | 1800 RPM |
| Melutaso (alhainen nopeus) | 14,8 dB |
| Melutaso (korkea nopeus) | 33,28 dB |
| Suurin ilmavirtaus | 84,36 cfm |
| Suurin ilmanpaine | 2,29 mmH2O |
| Tuulettimen halkaisija 2 | 14 cm |
| Tuulettimen 2 pyörimisnopeus (väh.) | 500 RPM |
| Tuulettimen 2 pyörimisnopeus (enint.) | 1800 RPM |
| Tuulettimen 2 melutaso (matala nopeus) | 14,8 dB |
| Tuulettimen 2 melutaso (korkea nopeus) | 33,28 dB |
| Tuulettimen 2 enimmäisilmavirtaus | 84,36 cfm |
| Tuulettimen 2 enimmäisilmanpaine | 2,29 mmH2O |
| Tukee pulssinleveysmodulaatiota (PWM) | Kyllä |
| Laakerityyppi | Kuulalaakeri |
| Tuulettimen äänitaso (min.) | 14,8 dB |
| Tuulettimen äänitaso (max.) | 33,28 dB |
| Tuuletinlaakeriteknologia | Kuulalaakeri |
| Pumppuliitin | 4-pin |
| Pumpun moottorin nopeus | 4200 RPM |
| Tuulettimen nopeuden (min.) | 500 RPM |
| Tuulettimen nopeus (maks.) | 1800 RPM |
| Tuotteen väri | Musta |
| Materiaali | Alumiini |
| Jäähdytin materiaali | Alumiini |
| Tuulettimien määrä | 2 tuuletin(ta) |
| Led-valaisu | Kyllä |
| Valaistuksen väri | Sininen, Vaaleanpunainen |
| Tuulettimen liitin | 4-pin + 4-pin |
| Tuulettimen virrankulutus | 2,28 W |
| Pumpun virrankulutus | 4,08 W |
| Nimellisvirta | 0,19 A |
| Pumpun jännite | 12 V |
| Pumpun virta | 0,34 mA |
| Tuulettimen jännite | 12 V |
| Tuulettimen virta | 0,19 A |
| Jäähdyttimen leveys | 31,2 cm |
| Jäähdyttimen syvyys | 2,7 cm |
| Jäähdyttimen korkeus | 14 cm |
| Tuulettimen mitat (LxSxK) | 140 x 140 x 25 mm |
| Harmonoidun järjestelmän nimikkeistökoodi (HS) | 84733080 |
