NOCTUA Computer Case Fan 12 Cm
Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.
|
|
NOCTUA Computer Case Fan 12 Cm
Tuotekoodi:
NF-A12x25r PWM
-
Käytetty alue
PC:n tuuletin
-
Fan diameter
12cm
|
NF-A12x25r PWM

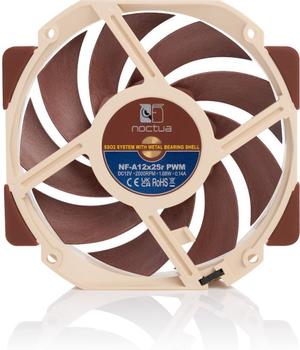

The NF-A12x25r is a round-frame version of Noctua’s award-winning flagship model 120mm NF-A12x25 fan. Its round shape makes it ideal for use on low-height dual-tower CPU coolers like the NH-D12L as well as other space-restricted applications that cannot accommodate square-frame 120mm fans. Just like the square NF-A12x25, the round NF-A12x25r uses a record-tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox® liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Sharing the same state-of-the-art impeller design with Flow Acceleration Channels, the NF-A12x25r achieves the same class-leading quiet cooling performance as its square-frame sibling. It also supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 2000 to 1700rpm. Topped off with exceptional running smoothness, Noctua’s reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer’s warranty, the NF-A12x25r is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for all 120mm applications that require a round frame.
Specifications:
- Size 120x120x25 mm
- Mounting hole spacing 93x83 mm
- Connector & pin-configuration 4-pin PWM
- Cable length 20cm + 30cm NA-EC1 extension cable
- Bearing SSO2
- Blade geometry A-Series with Flow Acceleration Channels
- Frame technology AAO (Advanced Acoustic Optimisation)
- Material Sterrox® LCP
- Rotational speed (+/- 10%) 2000 RPM
- Rotational speed with L.N.A. (+/- 10%) 1700 RPM
- Min. rotational speed @ 20% PWM (+/-20%) 450 RPM
- Airflow 102,1 m³/h
- Airflow with L.N.A. 84,5 m³/h
- Acoustical noise 22,6 dB(A)
- Acoustical noise with L.N.A. 18,8 dB(A)
- Static pressure 2,34 mm H₂O
- Static pressure with L.N.A. 1,65 mm H₂O
- Input power (max.) 1,68 W
- Input current (max.) 0,14 A
- Operating voltage 12 V
- Voltage PWM signal 5 V
- MTTF > 150.000 h
- Scope of delivery
- NA-RC14 Low-Noise Adaptor (L.N.A)
- NA-YC1 4-pin PWM y-cable
- NA-EC1 30cm extension cable
- 4x NA-AV2 anti-vibration mounts
- Fan screws
- Warranty 6 years
Huomioi, että kuva on suuntaa-antava ja varsinainen tuote saattaa ulkoasultaan poiketa tuotekuvasta (esim. tietokoneisiin ei välttämättä sisälly näyttöä, vaikka kuvassa sellainen olisikin). Jos tuotenimikkeessä on eri tiedot kuin tuotekuvauksessa, tuotenimikkeen tieto on oikein. Jos jokin asia jää epäselväksi, lähetä sähköpostia tukeen ennen tuotteen tilaamista.
