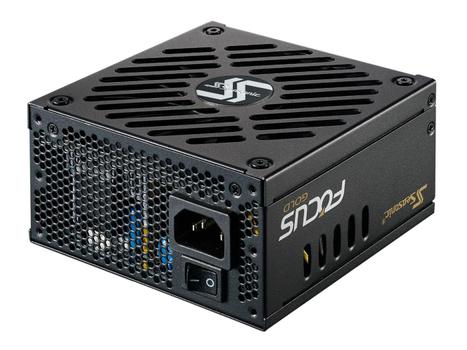

SEASONIC Focus SGX - 650W
Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.
|
|
SEASONIC Focus SGX - 650W
Tuotekoodi:
FOCUS-SGX-650
-
Virta
650W
-
80 PLUS certification
80 PLUS Gold
|
FOCUS SGX-650
Features:
- 80 PLUS® Gold certified
- Compact SFX-L Size - 125 (L) x 125 (W) x 63.5 (H) mm
- Tight Voltage Regulation
- Cable-free Connection Design
- S3FC - Fanless until 30 % load
- SFX to ATX Expandability
- Gold plated connectors
- 10 years warranty
Specifications:
80PLUS®
Cybenetics Efficiency Level
Cybenetics Noise Level
Form Factor - Intel SFX 12 V / ATX 12 V
Dimensions - 125 mm (L) x 125 mm (W) x 63.5 mm (H)
Fan Information
- Fan Size 120 mm
- Fan Control Premium Hybrid Fan Control
- Fan Bearing Fluid Dynamic Bearing
- Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information
- Modularity Fully Modular
- Cable type Flat black cables
Electrical Features
- Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
- MTBF @ 25 °C, excl. fan 100,000 hours
- AC Input Full Range
- Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
- Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
- Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty
AC Input
- Voltage: 100 V - 240 V
- Current: 9 - 4.5 A
- Frequency: 50 Hz - 60 Hz
DC Output
- Rail/Maximum Power
- +3.3 V /20 A
- +5 V /20 A
- +12 V /54A (648W)
- -12 V /0.3A
- +5 VSB/3A
- Total continuous power 650 W
