| Product SKUs |
|

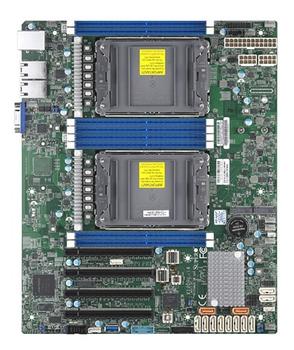

| MBD-X12DPL-i6 |
|
|
|
|
|
| Physical Stats |
|
| Form Factor |
|
| Dimension |
- 12.23" x 10" (31.06cm x 25.4cm)
|
|
|
|
|
| Processor |
|
| CPU |
- 3rd Gen Intel® Xeon® Scalable processors
- Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s
|
|
|
|
|
| System Memory |
|
| Memory Capacity |
- 8 DIMM slots
- Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB ECC RDIMM, DDR4-3200MHz
|
| Memory Type |
- 3200/2933/2666MHz ECC 3DS DDR4 LRDIMM, RDIMM
|
| DIMM Sizes |
- 256GB
- LRDIMM: 256GB
- RDIMM: 256GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
|
|
|
|
| On-Board Devices |
|
| Chipset |
|
| SATA |
- Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
|
| Graphics |
|
| Network Controllers |
- Dual LAN with Intel® i210 Gigabit Ethernet Controller
|
|
|
|
|
| Input / Output |
|
| LAN |
- 2 RJ45 Gigabit Ethernet LAN ports
|
| USB |
- 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
|
| Video Output |
|
| Serial Port |
|
| DOM |
- 2 SATA DOM (Disk on Module) power connector support
|
| TPM |
|
|
|
| Expansion Slots |
|
| PCI-E |
|
| M.2 |
- M.2 Interface: 1 PCI-E 4.0 x4; 1 PCI-E 4.0 x4
- Form Factor: 2280/22110, 2280
- Key: M-Key, M-Key
|
|
|
|
|
| System BIOS |
|
| BIOS Type |
|
|
|
|
|
| Management |
|
| Software |
- SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
|
| System Management Software |
- IPMICFG, IPMIView for Linux/Windows, SMCIPMITool
|
| Power Configurations |
|
|
|
|
|
| PC Health Monitoring |
|
| Voltage |
- Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 8 -fan status
|
| LED |
- UID/Remote UID
- BMC/IPMI Heartbeat LED
|
| Temperature |
- CPU thermal trip support
- PECI
|
| FAN |
- 8x 4-pin fan headers (up to 8 fans)
- PWM fan speed control
- Overheat LED indication
|
| Other Features |
- UID
- Node Manager Support
- Dual Cooling Zones
- CPU thermal trip support for processor protection
- Control of power-on for recovery from AC power loss
- Chassis intrusion header
- Chassis intrusion detection
- ATX Power connector
- ACPI power management
- RoT
- NCSI header
|
|
|
|
|
| Operating Environment |
|
| Operating Temperature Range |
- 10°C - 35°C (50°F - 95°F)
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
